MeshFilter filters out points that belong to given meshes in depth-images. More...

#include <mesh_filter.hpp>

Inheritance diagram for mesh_filter::MeshFilter< SensorType >:

Collaboration diagram for mesh_filter::MeshFilter< SensorType >:

Public Member Functions
	MOVEIT_DECLARE_PTR_MEMBER (MeshFilter)
	MeshFilter (const TransformCallback &transform_callback=TransformCallback(), const typename SensorType::Parameters &sensor_parameters=typename SensorType::Parameters())
	Constructor.
SensorType::Parameters &	parameters ()
	returns the Sensor Parameters
const SensorType::Parameters &	parameters () const
	returns the Sensor Parameters
Public Member Functions inherited from mesh_filter::MeshFilterBase
	MeshFilterBase (const TransformCallback &transform_callback, const SensorModel::Parameters &sensor_parameters, const std::string &render_vertex_shader="", const std::string &render_fragment_shader="", const std::string &filter_vertex_shader="", const std::string &filter_fragment_shader="")
	Constructor.
	~MeshFilterBase ()
	Destructor.
MeshHandle	addMesh (const shapes::Mesh &mesh)
	adds a mesh to the filter object.
void	removeMesh (MeshHandle mesh_handle)
	removes a mesh given by its handle
void	filter (const void *sensor_data, GLushort type, bool wait=false) const
	label/remove pixels from input depth-image
void	getFilteredLabels (LabelType *labels) const
	retrieves the labels of the input data
void	getFilteredDepth (float *depth) const
	retrieves the filtered depth values
void	getModelLabels (LabelType *labels) const
	retrieves the labels of the rendered model
void	getModelDepth (float *depth) const
	retrieves the depth values of the rendered model
void	setShadowThreshold (float threshold)
	set the shadow threshold. points that are further away than the rendered model are filtered out. Except they are further away than this threshold. Then these points are kept, but its label is set to 1 indicating that it is in the shadow of the model
void	setTransformCallback (const TransformCallback &transform_callback)
	set the callback for retrieving transformations for each mesh.
void	setPaddingScale (float scale)
	set the scale component of padding used to multiply with sensor-specific padding coefficients to get final coefficients.
void	setPaddingOffset (float offset)
	set the offset component of padding. This value is added to the scaled sensor-specific constant component.

Additional Inherited Members
Public Types inherited from mesh_filter::MeshFilterBase
enum	{ BACKGROUND = 0 , SHADOW = 1 , NEAR_CLIP = 2 , FAR_CLIP = 3 , FIRST_LABEL = 16 }
typedef std::function< bool(MeshHandle, Eigen::Isometry3d &)>	TransformCallback
Protected Member Functions inherited from mesh_filter::MeshFilterBase
void	initialize (const std::string &render_vertex_shader, const std::string &render_fragment_shader, const std::string &filter_vertex_shader, const std::string &filter_fragment_shader)
	initializes OpenGL related things as well as renderers
void	deInitialize ()
	cleaning up
void	run (const std::string &render_vertex_shader, const std::string &render_fragment_shader, const std::string &filter_vertex_shader, const std::string &filter_fragment_shader)
	filtering thread
void	doFilter (const void *sensor_data, const int encoding) const
	the filter method that does the magic
void	addMeshHelper (MeshHandle handle, const shapes::Mesh &cmesh)
	used within a Job to allow the main thread adding meshes
bool	removeMeshHelper (MeshHandle handle)
	used within a Job to allow the main thread removing meshes
void	addJob (const JobPtr &job) const
	add a Job for the main thread that needs to be executed there
void	setSize (unsigned int width, unsigned int height)
	sets the size of the frame buffers
Protected Attributes inherited from mesh_filter::MeshFilterBase
std::map< MeshHandle, GLMeshPtr >	meshes_
	storage for meshed to be filtered
SensorModel::ParametersPtr	sensor_parameters_
	the parameters of the used sensor model
MeshHandle	next_handle_
	next handle to be used for next mesh that is added
MeshHandle	min_handle_
	Handle values below this are all taken (this variable is used for more efficient computation of next_label_).
std::thread	filter_thread_
	the filtering thread that also holds the OpenGL context
std::condition_variable	jobs_condition_
	condition variable to notify the filtering thread if a new image arrived
std::mutex	jobs_mutex_
	mutex required for synchronization of condition states
std::queue< JobPtr >	jobs_queue_
	OpenGL job queue that need to be processed by the worker thread.
std::mutex	meshes_mutex_
	mutex for synchronization of updating filtered meshes
std::mutex	transform_callback_mutex_
	mutex for synchronization of setting/calling transform_callback_
bool	stop_
	indicates whether the filtering loop should stop
GLRendererPtr	mesh_renderer_
	first pass renderer for rendering the mesh
GLRendererPtr	depth_filter_
	second pass renderer for filtering the results of first pass
GLuint	canvas_
	canvas element (screen-filling quad) for second pass
GLuint	sensor_depth_texture_
	handle depth texture from sensor data
GLuint	shadow_threshold_location_
	handle to GLSL location of shadow threshold
TransformCallback	transform_callback_
	callback function for retrieving the mesh transformations
float	padding_scale_
	padding scale
float	padding_offset_
	padding offset
float	shadow_threshold_
	threshold for shadowed pixels vs. filtered pixels

Detailed Description

template<typename SensorType>
class mesh_filter::MeshFilter< SensorType >

MeshFilter filters out points that belong to given meshes in depth-images.

Author: Suat Gedikli (gedik.nosp@m.li@w.nosp@m.illow.nosp@m.gara.nosp@m.ge.co.nosp@m.m)

Definition at line 60 of file mesh_filter.hpp.

Constructor & Destructor Documentation

◆ MeshFilter()

template<typename SensorType>

mesh_filter::MeshFilter< SensorType >::MeshFilter	(	const TransformCallback &	transform_callback = TransformCallback(),
		const typename SensorType::Parameters &	sensor_parameters = typename SensorType::Parameters() )

Constructor.

Author: Suat Gedikli (gedik.nosp@m.li@w.nosp@m.illow.nosp@m.gara.nosp@m.ge.co.nosp@m.m)

Parameters

[in] transform_callback Callback function that is called for each mesh to obtain the current transformation.

Note: the callback expects the mesh handle but no time stamp. Its the users responsibility to return the correct transformation.

Definition at line 91 of file mesh_filter.hpp.

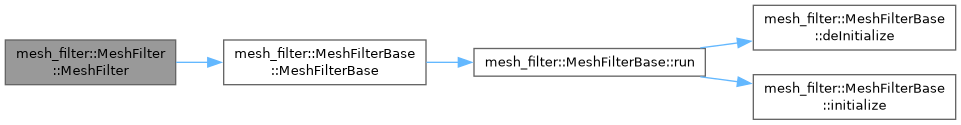

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ MOVEIT_DECLARE_PTR_MEMBER()

template<typename SensorType>

mesh_filter::MeshFilter< SensorType >::MOVEIT_DECLARE_PTR_MEMBER ( MeshFilter< SensorType > )

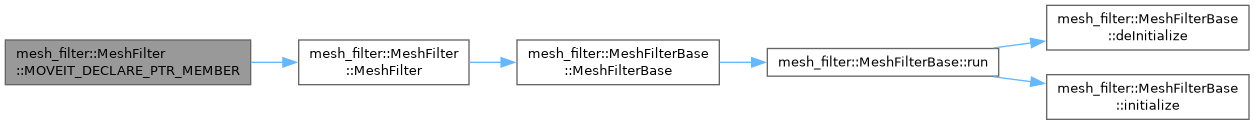

Here is the call graph for this function:

◆ parameters() [1/2]

template<typename SensorType>

SensorType::Parameters & mesh_filter::MeshFilter< SensorType >::parameters ( )

returns the Sensor Parameters

Author: Suat Gedikli (gedik.nosp@m.li@w.nosp@m.illow.nosp@m.gara.nosp@m.ge.co.nosp@m.m)

Returns: reference of the parameters object of the used Sensor

Definition at line 100 of file mesh_filter.hpp.

◆ parameters() [2/2]

template<typename SensorType>

const SensorType::Parameters & mesh_filter::MeshFilter< SensorType >::parameters ( ) const

returns the Sensor Parameters

Author: Suat Gedikli (gedik.nosp@m.li@w.nosp@m.illow.nosp@m.gara.nosp@m.ge.co.nosp@m.m)

Returns: const reference of the parameters object of the used Sensor

Definition at line 106 of file mesh_filter.hpp.

The documentation for this class was generated from the following files:

moveit_ros/perception/mesh_filter/include/moveit/mesh_filter/mesh_filter.hpp
moveit_ros/perception/mesh_filter/src/mesh_filter.cpp
