Provides an implementation of a snapshot of a transform tree that can be easily queried for transforming different quantities. Transforms are maintained as a list of transforms to a particular frame. All stored transforms are considered fixed. More...

#include <transforms.h>

Inheritance diagram for moveit::core::Transforms:

[legend]

Public Member Functions
	Transforms (const Transforms &)=delete
	Transforms cannot be copy-constructed. More...

Transforms &	operator= (const Transforms &)=delete
	Transforms cannot be copy-assigned. More...

	Transforms (const std::string &target_frame)
	Construct a transform list. More...

virtual	~Transforms ()
	Destructor. More...

const std::string &	getTargetFrame () const
	Get the planning frame corresponding to this set of transforms. More...

virtual bool	canTransform (const std::string &from_frame) const
	Check whether data can be transformed from a particular frame. More...

virtual bool	isFixedFrame (const std::string &frame) const
	Check whether a frame stays constant as the state of the robot model changes. This is true for any transform mainatined by this object. More...

virtual const Eigen::Isometry3d &	getTransform (const std::string &from_frame) const
	Get transform for from_frame (w.r.t target frame) More...

Setting and retrieving transforms maintained in this class
const FixedTransformsMap &	getAllTransforms () const
	Return all the transforms. More...

void	copyTransforms (std::vector< geometry_msgs::msg::TransformStamped > &transforms) const
	Get a vector of all the transforms as ROS messages. More...

void	setTransform (const Eigen::Isometry3d &t, const std::string &from_frame)
	Set a transform in the transform tree (adding it if necessary) More...

void	setTransform (const geometry_msgs::msg::TransformStamped &transform)
	Set a transform in the transform tree (adding it if necessary) More...

void	setTransforms (const std::vector< geometry_msgs::msg::TransformStamped > &transforms)
	Set a transform in the transform tree (adding it if necessary) More...

void	setAllTransforms (const FixedTransformsMap &transforms)
	Set all the transforms: a map from string names of frames to corresponding Eigen::Isometry3d (w.r.t the planning frame) More...

Applying transforms
void	transformVector3 (const std::string &from_frame, const Eigen::Vector3d &v_in, Eigen::Vector3d &v_out) const
	Transform a vector in from_frame to the target_frame Note: assumes that v_in and v_out are "free" vectors, not points. More...

void	transformQuaternion (const std::string &from_frame, const Eigen::Quaterniond &q_in, Eigen::Quaterniond &q_out) const
	Transform a quaternion in from_frame to the target_frame. More...

void	transformRotationMatrix (const std::string &from_frame, const Eigen::Matrix3d &m_in, Eigen::Matrix3d &m_out) const
	Transform a rotation matrix in from_frame to the target_frame. More...

void	transformPose (const std::string &from_frame, const Eigen::Isometry3d &t_in, Eigen::Isometry3d &t_out) const
	Transform a pose in from_frame to the target_frame. More...

Static Public Member Functions
static bool	sameFrame (const std::string &frame1, const std::string &frame2)
	Check if two frames end up being the same once the missing / are added as prefix (if they are missing) More...

Protected Attributes
std::string	target_frame_

FixedTransformsMap	transforms_map_

Detailed Description

Provides an implementation of a snapshot of a transform tree that can be easily queried for transforming different quantities. Transforms are maintained as a list of transforms to a particular frame. All stored transforms are considered fixed.

Definition at line 58 of file transforms.h.

Constructor & Destructor Documentation

◆ Transforms() [1/2]

moveit::core::Transforms::Transforms ( const Transforms & )

delete

Transforms cannot be copy-constructed.

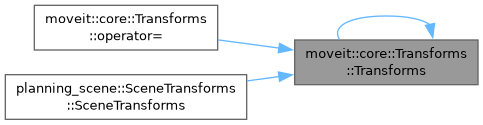

◆ Transforms() [2/2]

moveit::core::Transforms::Transforms ( const std::string & target_frame )

Construct a transform list.

Definition at line 57 of file transforms.cpp.

Here is the call graph for this function:

◆ ~Transforms()

moveit::core::Transforms::~Transforms ( )

virtualdefault

Destructor.

Member Function Documentation

◆ canTransform()

bool moveit::core::Transforms::canTransform ( const std::string & from_frame ) const

virtual

Check whether data can be transformed from a particular frame.

Reimplemented in planning_scene::SceneTransforms.

Definition at line 128 of file transforms.cpp.

◆ copyTransforms()

void moveit::core::Transforms::copyTransforms ( std::vector< geometry_msgs::msg::TransformStamped > & transforms ) const

Get a vector of all the transforms as ROS messages.

Parameters

transforms The output transforms. They are guaranteed to be valid isometries.

Definition at line 178 of file transforms.cpp.

Here is the caller graph for this function:

◆ getAllTransforms()

const FixedTransformsMap & moveit::core::Transforms::getAllTransforms ( ) const

Return all the transforms.

Returns: A map from string names of frames to corresponding Eigen::Isometry3d (w.r.t the planning frame). The transforms are guaranteed to be valid isometries.

Definition at line 84 of file transforms.cpp.

◆ getTargetFrame()

const std::string & moveit::core::Transforms::getTargetFrame ( ) const

Get the planning frame corresponding to this set of transforms.

Returns: The planning frame

Definition at line 79 of file transforms.cpp.

Here is the caller graph for this function:

◆ getTransform()

const Eigen::Isometry3d & moveit::core::Transforms::getTransform ( const std::string & from_frame ) const

virtual

Get transform for from_frame (w.r.t target frame)

Parameters

from_frame The string id of the frame for which the transform is being computed

Returns: The required transform. It is guaranteed to be a valid isometry.

Reimplemented in planning_scene::SceneTransforms.

Definition at line 110 of file transforms.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isFixedFrame()

bool moveit::core::Transforms::isFixedFrame ( const std::string & frame ) const

virtual

Check whether a frame stays constant as the state of the robot model changes. This is true for any transform mainatined by this object.

Reimplemented in planning_scene::SceneTransforms.

Definition at line 98 of file transforms.cpp.

Here is the caller graph for this function:

◆ operator=()

Transforms& moveit::core::Transforms::operator= ( const Transforms & )

delete

Transforms cannot be copy-assigned.

◆ sameFrame()

bool moveit::core::Transforms::sameFrame	(	const std::string &	frame1,
		const std::string &	frame2
	)

static

Check if two frames end up being the same once the missing / are added as prefix (if they are missing)

Definition at line 70 of file transforms.cpp.

Here is the caller graph for this function:

◆ setAllTransforms()

void moveit::core::Transforms::setAllTransforms ( const FixedTransformsMap & transforms )

Set all the transforms: a map from string names of frames to corresponding Eigen::Isometry3d (w.r.t the planning frame)

Definition at line 89 of file transforms.cpp.

◆ setTransform() [1/2]

void moveit::core::Transforms::setTransform	(	const Eigen::Isometry3d &	t,
		const std::string &	from_frame
	)

Set a transform in the transform tree (adding it if necessary)

Parameters

t	The input transform (w.r.t the target frame)
from_frame	The frame for which the input transform is specified

Definition at line 140 of file transforms.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTransform() [2/2]

void moveit::core::Transforms::setTransform ( const geometry_msgs::msg::TransformStamped & transform )

Set a transform in the transform tree (adding it if necessary)

Parameters

transform The input transform (the frame_id must match the target frame)

Definition at line 151 of file transforms.cpp.

Here is the call graph for this function:

◆ setTransforms()

void moveit::core::Transforms::setTransforms ( const std::vector< geometry_msgs::msg::TransformStamped > & transforms )

Set a transform in the transform tree (adding it if necessary)

Parameters

transform The input transforms (the frame_id must match the target frame)

Definition at line 172 of file transforms.cpp.

Here is the call graph for this function:

◆ transformPose()

void moveit::core::Transforms::transformPose	(	const std::string &	from_frame,
		const Eigen::Isometry3d &	t_in,
		Eigen::Isometry3d &	t_out
	)		const

inline

Transform a pose in from_frame to the target_frame.

Parameters

from_frame	The frame in which the input pose is specified
t_in	The input pose (in from_frame). Make sure the pose is a valid isometry.
t_out	The resultant (transformed) pose. It is guaranteed to be a valid isometry.

Definition at line 184 of file transforms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transformQuaternion()

void moveit::core::Transforms::transformQuaternion	(	const std::string &	from_frame,
		const Eigen::Quaterniond &	q_in,
		Eigen::Quaterniond &	q_out
	)		const

inline

Transform a quaternion in from_frame to the target_frame.

Parameters

from_frame	The frame in which the input quaternion is specified
v_in	The input quaternion (in from_frame). Make sure the quaternion is normalized.
v_out	The resultant (transformed) quaternion. It is guaranteed to be a valid and normalized quaternion.

Definition at line 159 of file transforms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transformRotationMatrix()

void moveit::core::Transforms::transformRotationMatrix	(	const std::string &	from_frame,
		const Eigen::Matrix3d &	m_in,
		Eigen::Matrix3d &	m_out
	)		const

inline

Transform a rotation matrix in from_frame to the target_frame.

Parameters

from_frame	The frame in which the input rotation matrix is specified
m_in	The input rotation matrix (in from_frame). Make sure the matrix is a valid rotation matrix.
m_out	The resultant (transformed) rotation matrix. It is guaranteed to be a valid rotation matrix.

Definition at line 172 of file transforms.h.

Here is the call graph for this function:

◆ transformVector3()

void moveit::core::Transforms::transformVector3	(	const std::string &	from_frame,
		const Eigen::Vector3d &	v_in,
		Eigen::Vector3d &	v_out
	)		const

inline

Transform a vector in from_frame to the target_frame Note: assumes that v_in and v_out are "free" vectors, not points.

Parameters

from_frame	The frame from which the transform is computed
v_in	The input vector (in from_frame)
v_out	The resultant (transformed) vector

Definition at line 147 of file transforms.h.

Here is the call graph for this function:

Member Data Documentation

◆ target_frame_

std::string moveit::core::Transforms::target_frame_

protected

Definition at line 210 of file transforms.h.

◆ transforms_map_

FixedTransformsMap moveit::core::Transforms::transforms_map_

protected

Definition at line 211 of file transforms.h.

The documentation for this class was generated from the following files:

moveit_core/transforms/include/moveit/transforms/transforms.h
