moveit_warehouse::RobotStateStorage Class Reference

#include <state_storage.h>

Inheritance diagram for moveit_warehouse::RobotStateStorage:
Inheritance graph
[legend]
Collaboration diagram for moveit_warehouse::RobotStateStorage:
Collaboration graph
[legend]

Public Member Functions

 RobotStateStorage (warehouse_ros::DatabaseConnection::Ptr conn)

void addRobotState (const moveit_msgs::msg::RobotState &msg, const std::string &name, const std::string &robot="")

bool hasRobotState (const std::string &name, const std::string &robot="") const

void getKnownRobotStates (std::vector< std::string > &names, const std::string &robot="") const

void getKnownRobotStates (const std::string &regex, std::vector< std::string > &names, const std::string &robot="") const

bool getRobotState (RobotStateWithMetadata &msg_m, const std::string &name, const std::string &robot="") const
 Get the constraints named name. Return false on failure.

void renameRobotState (const std::string &old_name, const std::string &new_name, const std::string &robot="")

void removeRobotState (const std::string &name, const std::string &robot="")

void reset ()

- Public Member Functions inherited from moveit_warehouse::MoveItMessageStorage
 MoveItMessageStorage (warehouse_ros::DatabaseConnection::Ptr conn)
 Takes a warehouse_ros DatabaseConnection. The DatabaseConnection is expected to have already been initialized.

virtual ~MoveItMessageStorage ()


Static Public Attributes

static const std::string DATABASE_NAME = "moveit_robot_states"

static const std::string STATE_NAME = "state_id"

static const std::string ROBOT_NAME = "robot_id"


Additional Inherited Members

- Protected Member Functions inherited from moveit_warehouse::MoveItMessageStorage
void filterNames (const std::string &regex, std::vector< std::string > &names) const
 Keep only the names that match regex.

- Protected Attributes inherited from moveit_warehouse::MoveItMessageStorage
warehouse_ros::DatabaseConnection::Ptr conn_


Detailed Description

Definition at line 53 of file state_storage.h.

Constructor & Destructor Documentation

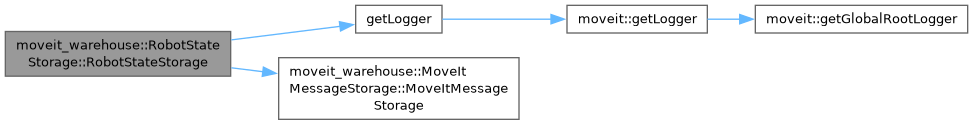

◆ RobotStateStorage()

moveit_warehouse::RobotStateStorage::RobotStateStorage ( warehouse_ros::DatabaseConnection::Ptr  conn)

Definition at line 50 of file state_storage.cpp.

Member Function Documentation

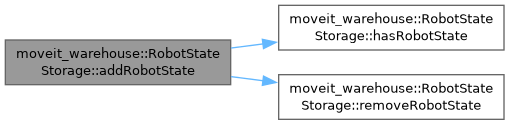

◆ addRobotState()

void moveit_warehouse::RobotStateStorage::addRobotState ( const moveit_msgs::msg::RobotState &  msg,
const std::string &  name,
const std::string &  robot = ""
)

Definition at line 68 of file state_storage.cpp.

Here is the caller graph for this function:

◆ getKnownRobotStates() [1/2]

void moveit_warehouse::RobotStateStorage::getKnownRobotStates ( const std::string &  regex,
std::vector< std::string > &  names,
const std::string &  robot = ""
) const

Definition at line 94 of file state_storage.cpp.

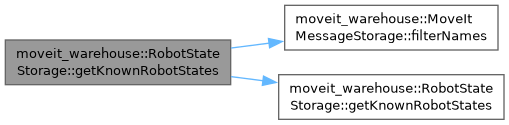

◆ getKnownRobotStates() [2/2]

void moveit_warehouse::RobotStateStorage::getKnownRobotStates ( std::vector< std::string > &  names,
const std::string &  robot = ""
) const

Definition at line 101 of file state_storage.cpp.

Here is the caller graph for this function:

◆ getRobotState()

bool moveit_warehouse::RobotStateStorage::getRobotState ( RobotStateWithMetadata msg_m,
const std::string &  name,
const std::string &  robot = ""
) const

Get the constraints named name. Return false on failure.

Definition at line 116 of file state_storage.cpp.

Here is the caller graph for this function:

◆ hasRobotState()

bool moveit_warehouse::RobotStateStorage::hasRobotState ( const std::string &  name,
const std::string &  robot = ""
) const

Definition at line 84 of file state_storage.cpp.

Here is the caller graph for this function:

◆ removeRobotState()

void moveit_warehouse::RobotStateStorage::removeRobotState ( const std::string &  name,
const std::string &  robot = ""
)

Definition at line 148 of file state_storage.cpp.

Here is the caller graph for this function:

◆ renameRobotState()

void moveit_warehouse::RobotStateStorage::renameRobotState ( const std::string &  old_name,
const std::string &  new_name,
const std::string &  robot = ""
)

Definition at line 135 of file state_storage.cpp.

Here is the caller graph for this function:

◆ reset()

void moveit_warehouse::RobotStateStorage::reset ( )

Definition at line 61 of file state_storage.cpp.

Here is the caller graph for this function:

Member Data Documentation

◆ DATABASE_NAME

const std::string moveit_warehouse::RobotStateStorage::DATABASE_NAME = "moveit_robot_states"
static

Definition at line 56 of file state_storage.h.

◆ ROBOT_NAME

const std::string moveit_warehouse::RobotStateStorage::ROBOT_NAME = "robot_id"
static

Definition at line 59 of file state_storage.h.

◆ STATE_NAME

const std::string moveit_warehouse::RobotStateStorage::STATE_NAME = "state_id"
static

Definition at line 58 of file state_storage.h.


The documentation for this class was generated from the following files:
