moveit::planning_interface::MoveGroupInterface Class Reference

Client class to conveniently use the ROS interfaces provided by the move_group node. More...

#include <moveit/planning_interface/move_group_interface.h>

Classes

class  MoveGroupInterfaceImpl

struct  Options
 Specification of options to use when constructing the MoveGroupInterface class. More...

struct  Plan
 The representation of a motion plan (as ROS messages) More...


Public Member Functions

 MOVEIT_STRUCT_FORWARD (Plan)

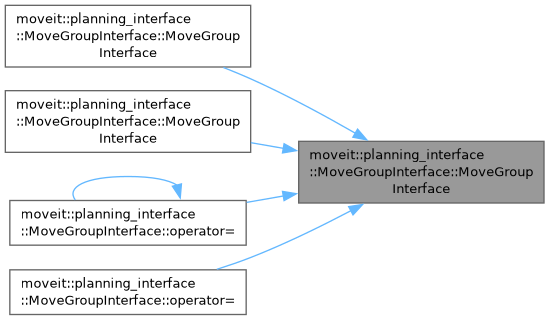

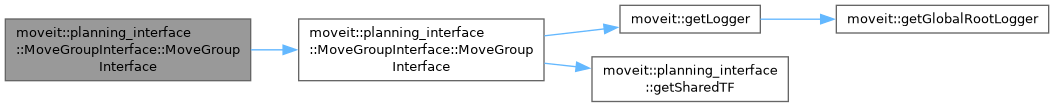

 MoveGroupInterface (const rclcpp::Node::SharedPtr &node, const Options &opt, const std::shared_ptr< tf2_ros::Buffer > &tf_buffer=std::shared_ptr< tf2_ros::Buffer >(), const rclcpp::Duration &wait_for_servers=rclcpp::Duration::from_seconds(-1))
 Construct a MoveGroupInterface instance call using a specified set of options opt.

 MoveGroupInterface (const rclcpp::Node::SharedPtr &node, const std::string &group, const std::shared_ptr< tf2_ros::Buffer > &tf_buffer=std::shared_ptr< tf2_ros::Buffer >(), const rclcpp::Duration &wait_for_servers=rclcpp::Duration::from_seconds(-1))
 Construct a client for the MoveGroup action for a particular group.

 ~MoveGroupInterface ()

 MoveGroupInterface (const MoveGroupInterface &)=delete
 This class owns unique resources (e.g. action clients, threads) and its not very meaningful to copy. Pass by references, move it, or simply create multiple instances where required.

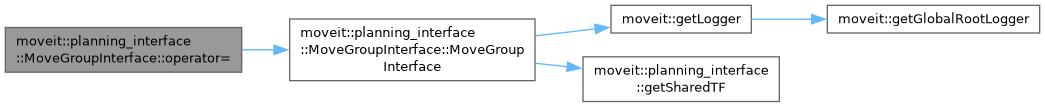

MoveGroupInterfaceoperator= (const MoveGroupInterface &)=delete

 MoveGroupInterface (MoveGroupInterface &&other) noexcept

MoveGroupInterfaceoperator= (MoveGroupInterface &&other) noexcept

const std::string & getName () const
 Get the name of the group this instance operates on.

const std::vector< std::string > & getNamedTargets () const
 Get the names of the named robot states available as targets, both either remembered states or default states from srdf.

const std::shared_ptr< tf2_ros::Buffer > & getTF () const
 Get the tf2_ros::Buffer.

moveit::core::RobotModelConstPtr getRobotModel () const
 Get the RobotModel object.

const rclcpp::Node::SharedPtr & getNode () const
 Get the ROS node handle of this instance operates on.

const std::string & getPlanningFrame () const
 Get the name of the frame in which the robot is planning.

const std::vector< std::string > & getJointModelGroupNames () const
 Get the available planning group names.

const std::vector< std::string > & getJointNames () const
 Get vector of names of joints available in move group.

const std::vector< std::string > & getLinkNames () const
 Get vector of names of links available in move group.

std::map< std::string, double > getNamedTargetValues (const std::string &name) const
 Get the joint angles for targets specified by name.

const std::vector< std::string > & getActiveJoints () const
 Get only the active (actuated) joints this instance operates on.

const std::vector< std::string > & getJoints () const
 Get all the joints this instance operates on (including fixed joints)

unsigned int getVariableCount () const
 Get the number of variables used to describe the state of this group. This is larger or equal to the number of DOF.

bool getInterfaceDescriptions (std::vector< moveit_msgs::msg::PlannerInterfaceDescription > &desc) const
 Get the descriptions of all planning plugins loaded by the action server.

bool getInterfaceDescription (moveit_msgs::msg::PlannerInterfaceDescription &desc) const
 Get the description of the default planning plugin loaded by the action server.

std::map< std::string, std::string > getPlannerParams (const std::string &planner_id, const std::string &group="") const
 Get the planner parameters for given group and planner_id.

void setPlannerParams (const std::string &planner_id, const std::string &group, const std::map< std::string, std::string > &params, bool bReplace=false)
 Set the planner parameters for given group and planner_id.

std::string getDefaultPlanningPipelineId () const

void setPlanningPipelineId (const std::string &pipeline_id)
 Specify a planning pipeline to be used for further planning.

const std::string & getPlanningPipelineId () const
 Get the current planning_pipeline_id.

std::string getDefaultPlannerId (const std::string &group="") const
 Get the default planner of the current planning pipeline for the given group (or the pipeline's default)

void setPlannerId (const std::string &planner_id)
 Specify a planner to be used for further planning.

const std::string & getPlannerId () const
 Get the current planner_id.

void setPlanningTime (double seconds)
 Specify the maximum amount of time to use when planning.

void setNumPlanningAttempts (unsigned int num_planning_attempts)
 Set the number of times the motion plan is to be computed from scratch before the shortest solution is returned. The default value is 1.

void setMaxVelocityScalingFactor (double max_velocity_scaling_factor)
 Set a scaling factor for optionally reducing the maximum joint velocity. Allowed values are in (0,1]. The maximum joint velocity specified in the robot model is multiplied by the factor. If the value is 0, it is set to the default value, which is defined in joint_limits.yaml of the moveit_config. If the value is greater than 1, it is set to 1.0.

double getMaxVelocityScalingFactor () const
 Get the max velocity scaling factor set by setMaxVelocityScalingFactor().

void setMaxAccelerationScalingFactor (double max_acceleration_scaling_factor)
 Set a scaling factor for optionally reducing the maximum joint acceleration. Allowed values are in (0,1]. The maximum joint acceleration specified in the robot model is multiplied by the factor. If the value is 0, it is set to the default value, which is defined in joint_limits.yaml of the moveit_config. If the value is greater than 1, it is set to 1.0.

double getMaxAccelerationScalingFactor () const
 Get the max acceleration scaling factor set by setMaxAccelerationScalingFactor().

double getPlanningTime () const
 Get the number of seconds set by setPlanningTime()

double getGoalJointTolerance () const
 Get the tolerance that is used for reaching a joint goal. This is distance for each joint in configuration space.

double getGoalPositionTolerance () const
 Get the tolerance that is used for reaching a position goal. This is be the radius of a sphere where the end-effector must reach.

double getGoalOrientationTolerance () const
 Get the tolerance that is used for reaching an orientation goal. This is the tolerance for roll, pitch and yaw, in radians.

void setGoalTolerance (double tolerance)
 Set the tolerance that is used for reaching the goal. For joint state goals, this will be distance for each joint, in the configuration space (radians or meters depending on joint type). For pose goals this will be the radius of a sphere where the end-effector must reach. This function simply triggers calls to setGoalPositionTolerance(), setGoalOrientationTolerance() and setGoalJointTolerance().

void setGoalJointTolerance (double tolerance)
 Set the joint tolerance (for each joint) that is used for reaching the goal when moving to a joint value target.

void setGoalPositionTolerance (double tolerance)
 Set the position tolerance that is used for reaching the goal when moving to a pose.

void setGoalOrientationTolerance (double tolerance)
 Set the orientation tolerance that is used for reaching the goal when moving to a pose.

void setWorkspace (double minx, double miny, double minz, double maxx, double maxy, double maxz)
 Specify the workspace bounding box. The box is specified in the planning frame (i.e. relative to the robot root link start position). This is useful when the planning group contains the root joint of the robot – i.e. when planning motion for the robot relative to the world.

void setStartState (const moveit_msgs::msg::RobotState &start_state)
 If a different start state should be considered instead of the current state of the robot, this function sets that state.

void setStartState (const moveit::core::RobotState &start_state)
 If a different start state should be considered instead of the current state of the robot, this function sets that state.

void setStartStateToCurrentState ()
 Set the starting state for planning to be that reported by the robot's joint state publication.

void setSupportSurfaceName (const std::string &name)
 For pick/place operations, the name of the support surface is used to specify the fact that attached objects are allowed to touch the support surface.

Setting a joint state target (goal)

There are 2 types of goal targets:

  • a JointValueTarget (aka JointStateTarget) specifies an absolute value for each joint (angle for rotational joints or position for prismatic joints).
  • a PoseTarget (Position, Orientation, or Pose) specifies the pose of one or more end effectors (and the planner can use any joint values that reaches the pose(s)).

Only one or the other is used for planning. Calling any of the set*JointValueTarget() functions sets the current goal target to the JointValueTarget. Calling any of the setPoseTarget(), setOrientationTarget(), setRPYTarget(), setPositionTarget() functions sets the current goal target to the Pose target.

bool setJointValueTarget (const std::vector< double > &group_variable_values)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const std::map< std::string, double > &variable_values)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const std::vector< std::string > &variable_names, const std::vector< double > &variable_values)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const moveit::core::RobotState &robot_state)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const std::string &joint_name, const std::vector< double > &values)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const std::string &joint_name, double value)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const sensor_msgs::msg::JointState &state)
 Set the JointValueTarget and use it for future planning requests.

bool setJointValueTarget (const geometry_msgs::msg::Pose &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

bool setJointValueTarget (const geometry_msgs::msg::PoseStamped &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

bool setJointValueTarget (const Eigen::Isometry3d &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

bool setApproximateJointValueTarget (const geometry_msgs::msg::Pose &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

bool setApproximateJointValueTarget (const geometry_msgs::msg::PoseStamped &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

bool setApproximateJointValueTarget (const Eigen::Isometry3d &eef_pose, const std::string &end_effector_link="")
 Set the joint state goal for a particular joint by computing IK.

void setRandomTarget ()
 Set the joint state goal to a random joint configuration.

bool setNamedTarget (const std::string &name)
 Set the current joint values to be ones previously remembered by rememberJointValues() or, if not found, that are specified in the SRDF under the name name as a group state.

void getJointValueTarget (std::vector< double > &group_variable_values) const
 Get the current joint state goal in a form compatible to setJointValueTarget()

Setting a pose target (goal)

Setting a Pose (or Position or Orientation) target disables any previously set JointValueTarget.

For groups that have multiple end effectors, a pose can be set for each end effector in the group. End effectors which do not have a pose target set will end up in arbitrary positions.

bool setPositionTarget (double x, double y, double z, const std::string &end_effector_link="")
 Set the goal position of the end-effector end_effector_link to be (x, y, z).

bool setRPYTarget (double roll, double pitch, double yaw, const std::string &end_effector_link="")
 Set the goal orientation of the end-effector end_effector_link to be (roll,pitch,yaw) radians.

bool setOrientationTarget (double x, double y, double z, double w, const std::string &end_effector_link="")
 Set the goal orientation of the end-effector end_effector_link to be the quaternion (x,y,z,w).

bool setPoseTarget (const Eigen::Isometry3d &end_effector_pose, const std::string &end_effector_link="")
 Set the goal pose of the end-effector end_effector_link.

bool setPoseTarget (const geometry_msgs::msg::Pose &target, const std::string &end_effector_link="")
 Set the goal pose of the end-effector end_effector_link.

bool setPoseTarget (const geometry_msgs::msg::PoseStamped &target, const std::string &end_effector_link="")
 Set the goal pose of the end-effector end_effector_link.

bool setPoseTargets (const EigenSTL::vector_Isometry3d &end_effector_pose, const std::string &end_effector_link="")
 Set goal poses for end_effector_link.

bool setPoseTargets (const std::vector< geometry_msgs::msg::Pose > &target, const std::string &end_effector_link="")
 Set goal poses for end_effector_link.

bool setPoseTargets (const std::vector< geometry_msgs::msg::PoseStamped > &target, const std::string &end_effector_link="")
 Set goal poses for end_effector_link.

void setPoseReferenceFrame (const std::string &pose_reference_frame)
 Specify which reference frame to assume for poses specified without a reference frame.

bool setEndEffectorLink (const std::string &end_effector_link)
 Specify the parent link of the end-effector. This end_effector_link will be used in calls to pose target functions when end_effector_link is not explicitly specified.

bool setEndEffector (const std::string &eef_name)
 Specify the name of the end-effector to use. This is equivalent to setting the EndEffectorLink to the parent link of this end effector.

void clearPoseTarget (const std::string &end_effector_link="")
 Forget pose(s) specified for end_effector_link.

void clearPoseTargets ()
 Forget any poses specified for all end-effectors.

const geometry_msgs::msg::PoseStamped & getPoseTarget (const std::string &end_effector_link="") const

const std::vector< geometry_msgs::msg::PoseStamped > & getPoseTargets (const std::string &end_effector_link="") const

const std::string & getEndEffectorLink () const
 Get the current end-effector link. This returns the value set by setEndEffectorLink() (or indirectly by setEndEffector()). If setEndEffectorLink() was not called, this function reports the link name that serves as parent of an end-effector attached to this group. If there are multiple end-effectors, one of them is returned. If no such link is known, the empty string is returned.

const std::string & getEndEffector () const
 Get the current end-effector name. This returns the value set by setEndEffector() (or indirectly by setEndEffectorLink()). If setEndEffector() was not called, this function reports an end-effector attached to this group. If there are multiple end-effectors, one of them is returned. If no end-effector is known, the empty string is returned.

const std::string & getPoseReferenceFrame () const
 Get the reference frame set by setPoseReferenceFrame(). By default this is the reference frame of the robot model.

Planning a path from the start position to the Target (goal) position, and executing that plan.
moveit::core::MoveItErrorCode asyncMove ()
 Plan and execute a trajectory that takes the group of joints declared in the constructor to the specified target. This call is not blocking (does not wait for the execution of the trajectory to complete).

rclcpp_action::Client< moveit_msgs::action::MoveGroup > & getMoveGroupClient () const
 Get the move_group action client used by the MoveGroupInterface. The client can be used for querying the execution state of the trajectory and abort trajectory execution during asynchronous execution.

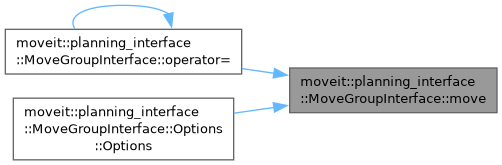

moveit::core::MoveItErrorCode move ()
 Plan and execute a trajectory that takes the group of joints declared in the constructor to the specified target. This call is always blocking (waits for the execution of the trajectory to complete) and requires an asynchronous spinner to be started.

moveit::core::MoveItErrorCode plan (Plan &plan)
 Compute a motion plan that takes the group declared in the constructor from the current state to the specified target. No execution is performed. The resulting plan is stored in plan.

moveit::core::MoveItErrorCode asyncExecute (const Plan &plan, const std::vector< std::string > &controllers=std::vector< std::string >())
 Given a plan, execute it without waiting for completion.

moveit::core::MoveItErrorCode asyncExecute (const moveit_msgs::msg::RobotTrajectory &trajectory, const std::vector< std::string > &controllers=std::vector< std::string >())
 Given a robot trajectory, execute it without waiting for completion.

moveit::core::MoveItErrorCode execute (const Plan &plan, const std::vector< std::string > &controllers=std::vector< std::string >())
 Given a plan, execute it while waiting for completion.

moveit::core::MoveItErrorCode execute (const moveit_msgs::msg::RobotTrajectory &trajectory, const std::vector< std::string > &controllers=std::vector< std::string >())
 Given a robot trajectory, execute it while waiting for completion.

double computeCartesianPath (const std::vector< geometry_msgs::msg::Pose > &waypoints, double eef_step, double, moveit_msgs::msg::RobotTrajectory &trajectory, bool avoid_collisions=true, moveit_msgs::msg::MoveItErrorCodes *error_code=nullptr)
 Compute a Cartesian path that follows specified waypoints with a step size of at most eef_step meters between end effector configurations of consecutive points in the result trajectory. The reference frame for the waypoints is that specified by setPoseReferenceFrame(). No more than jump_threshold is allowed as change in distance in the configuration space of the robot (this is to prevent 'jumps' in IK solutions). Collisions are avoided if avoid_collisions is set to true. If collisions cannot be avoided, the function fails. Return a value that is between 0.0 and 1.0 indicating the fraction of the path achieved as described by the waypoints. Return -1.0 in case of error.

double computeCartesianPath (const std::vector< geometry_msgs::msg::Pose > &waypoints, double eef_step, moveit_msgs::msg::RobotTrajectory &trajectory, bool avoid_collisions=true, moveit_msgs::msg::MoveItErrorCodes *error_code=nullptr)

double computeCartesianPath (const std::vector< geometry_msgs::msg::Pose > &waypoints, double eef_step, double, moveit_msgs::msg::RobotTrajectory &trajectory, const moveit_msgs::msg::Constraints &path_constraints, bool avoid_collisions=true, moveit_msgs::msg::MoveItErrorCodes *error_code=nullptr)
 Compute a Cartesian path that follows specified waypoints with a step size of at most eef_step meters between end effector configurations of consecutive points in the result trajectory. The reference frame for the waypoints is that specified by setPoseReferenceFrame(). No more than jump_threshold is allowed as change in distance in the configuration space of the robot (this is to prevent 'jumps' in IK solutions). Kinematic constraints for the path given by path_constraints will be met for every point along the trajectory, if they are not met, a partial solution will be returned. Constraints are checked (collision and kinematic) if avoid_collisions is set to true. If constraints cannot be met, the function fails. Return a value that is between 0.0 and 1.0 indicating the fraction of the path achieved as described by the waypoints. Return -1.0 in case of error.

double computeCartesianPath (const std::vector< geometry_msgs::msg::Pose > &waypoints, double eef_step, moveit_msgs::msg::RobotTrajectory &trajectory, const moveit_msgs::msg::Constraints &path_constraints, bool avoid_collisions=true, moveit_msgs::msg::MoveItErrorCodes *error_code=nullptr)

void stop ()
 Stop any trajectory execution, if one is active.

void allowReplanning (bool flag)
 Specify whether the robot is allowed to replan if it detects changes in the environment.

void setReplanAttempts (int32_t attempts)
 Maximum number of replanning attempts.

void setReplanDelay (double delay)
 Sleep this duration between replanning attempts (in walltime seconds)

void allowLooking (bool flag)
 Specify whether the robot is allowed to look around before moving if it determines it should (default is false)

void setLookAroundAttempts (int32_t attempts)
 How often is the system allowed to move the camera to update environment model when looking.

void constructRobotState (moveit_msgs::msg::RobotState &state)
 Build a RobotState message for use with plan() or computeCartesianPath() If the move_group has a custom set start state, this method will use that as the robot state.

void constructMotionPlanRequest (moveit_msgs::msg::MotionPlanRequest &request)
 Build the MotionPlanRequest that would be sent to the move_group action with plan() or move() and store it in request.

High level actions that trigger a sequence of plans and actions.
bool attachObject (const std::string &object, const std::string &link="")
 Given the name of an object in the planning scene, make the object attached to a link of the robot. If no link name is specified, the end-effector is used. If there is no end-effector, the first link in the group is used. If the object name does not exist an error will be produced in move_group, but the request made by this interface will succeed.

bool attachObject (const std::string &object, const std::string &link, const std::vector< std::string > &touch_links)
 Given the name of an object in the planning scene, make the object attached to a link of the robot. The set of links the object is allowed to touch without considering that a collision is specified by touch_links. If link is empty, the end-effector link is used. If there is no end-effector, the first link in the group is used. If the object name does not exist an error will be produced in move_group, but the request made by this interface will succeed.

bool detachObject (const std::string &name="")
 Detach an object. name specifies the name of the object attached to this group, or the name of the link the object is attached to. If there is no name specified, and there is only one attached object, that object is detached. An error is produced if no object to detach is identified.

Query current robot state
bool startStateMonitor (double wait=1.0)
 When reasoning about the current state of a robot, a CurrentStateMonitor instance is automatically constructed. This function allows triggering the construction of that object from the beginning, so that future calls to functions such as getCurrentState() will not take so long and are less likely to fail.

std::vector< double > getCurrentJointValues () const
 Get the current joint values for the joints planned for by this instance (see getJoints())

moveit::core::RobotStatePtr getCurrentState (double wait=1) const
 Get the current state of the robot within the duration specified by wait.

geometry_msgs::msg::PoseStamped getCurrentPose (const std::string &end_effector_link="") const
 Get the pose for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

std::vector< double > getCurrentRPY (const std::string &end_effector_link="") const
 Get the roll-pitch-yaw (XYZ) for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

std::vector< double > getRandomJointValues () const
 Get random joint values for the joints planned for by this instance (see getJoints())

geometry_msgs::msg::PoseStamped getRandomPose (const std::string &end_effector_link="") const
 Get a random reachable pose for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

Manage named joint configurations
void rememberJointValues (const std::string &name)
 Remember the current joint values (of the robot being monitored) under name. These can be used by setNamedTarget(). These values are remembered locally in the client. Other clients will not have access to them.

void rememberJointValues (const std::string &name, const std::vector< double > &values)
 Remember the specified joint values under name. These can be used by setNamedTarget(). These values are remembered locally in the client. Other clients will not have access to them.

const std::map< std::string, std::vector< double > > & getRememberedJointValues () const
 Get the currently remembered map of names to joint values.

void forgetJointValues (const std::string &name)
 Forget the joint values remembered under name.

Manage planning constraints
void setConstraintsDatabase (const std::string &host, unsigned int port)
 Specify where the database server that holds known constraints resides.

std::vector< std::string > getKnownConstraints () const
 Get the names of the known constraints as read from the Mongo database, if a connection was achieved.

moveit_msgs::msg::Constraints getPathConstraints () const
 Get the actual set of constraints in use with this MoveGroupInterface.

bool setPathConstraints (const std::string &constraint)
 Specify a set of path constraints to use. The constraints are looked up by name from the Mongo database server. This replaces any path constraints set in previous calls to setPathConstraints().

void setPathConstraints (const moveit_msgs::msg::Constraints &constraint)
 Specify a set of path constraints to use. This version does not require a database server. This replaces any path constraints set in previous calls to setPathConstraints().

void clearPathConstraints ()
 Specify that no path constraints are to be used. This removes any path constraints set in previous calls to setPathConstraints().

moveit_msgs::msg::TrajectoryConstraints getTrajectoryConstraints () const

void setTrajectoryConstraints (const moveit_msgs::msg::TrajectoryConstraints &constraint)

void clearTrajectoryConstraints ()


Static Public Attributes

static const std::string ROBOT_DESCRIPTION
 Default ROS parameter name from where to read the robot's URDF. Set to 'robot_description'.


Protected Member Functions

const moveit::core::RobotStategetTargetRobotState () const


Detailed Description

Client class to conveniently use the ROS interfaces provided by the move_group node.

This class includes many default settings to make things easy to use.

Definition at line 75 of file move_group_interface.h.

Constructor & Destructor Documentation

◆ MoveGroupInterface() [1/4]

moveit::planning_interface::MoveGroupInterface::MoveGroupInterface ( const rclcpp::Node::SharedPtr &  node,
const Options opt,
const std::shared_ptr< tf2_ros::Buffer > &  tf_buffer = std::shared_ptr<tf2_ros::Buffer>(),
const rclcpp::Duration &  wait_for_servers = rclcpp::Duration::from_seconds(-1)
)

Construct a MoveGroupInterface instance call using a specified set of options opt.

Parameters
opt.A MoveGroupInterface::Options structure, if you pass a ros::NodeHandle with a specific callback queue, it has to be of type ros::CallbackQueue (which is the default type of callback queues used in ROS)
tf_buffer.Specify a TF2_ROS Buffer instance to use. If not specified, one will be constructed internally
wait_for_servers.Timeout for connecting to action servers. -1 time means unlimited waiting.

Definition at line 1337 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ MoveGroupInterface() [2/4]

moveit::planning_interface::MoveGroupInterface::MoveGroupInterface ( const rclcpp::Node::SharedPtr &  node,
const std::string &  group,
const std::shared_ptr< tf2_ros::Buffer > &  tf_buffer = std::shared_ptr<tf2_ros::Buffer>(),
const rclcpp::Duration &  wait_for_servers = rclcpp::Duration::from_seconds(-1)
)

Construct a client for the MoveGroup action for a particular group.

Parameters
tf_buffer.Specify a TF2_ROS Buffer instance to use. If not specified, one will be constructed internally
wait_for_servers.Timeout for connecting to action servers. -1 time means unlimited waiting.

Definition at line 1326 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ ~MoveGroupInterface()

moveit::planning_interface::MoveGroupInterface::~MoveGroupInterface ( )

Definition at line 1345 of file move_group_interface.cpp.

◆ MoveGroupInterface() [3/4]

moveit::planning_interface::MoveGroupInterface::MoveGroupInterface ( const MoveGroupInterface )
delete

This class owns unique resources (e.g. action clients, threads) and its not very meaningful to copy. Pass by references, move it, or simply create multiple instances where required.

◆ MoveGroupInterface() [4/4]

moveit::planning_interface::MoveGroupInterface::MoveGroupInterface ( MoveGroupInterface &&  other)
noexcept

Definition at line 1350 of file move_group_interface.cpp.

Member Function Documentation

◆ allowLooking()

void moveit::planning_interface::MoveGroupInterface::allowLooking ( bool  flag)

Specify whether the robot is allowed to look around before moving if it determines it should (default is false)

Definition at line 2200 of file move_group_interface.cpp.

◆ allowReplanning()

void moveit::planning_interface::MoveGroupInterface::allowReplanning ( bool  flag)

Specify whether the robot is allowed to replan if it detects changes in the environment.

Definition at line 2219 of file move_group_interface.cpp.

◆ asyncExecute() [1/2]

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::asyncExecute ( const moveit_msgs::msg::RobotTrajectory &  trajectory,
const std::vector< std::string > &  controllers = std::vector<std::string>()
)

Given a robot trajectory, execute it without waiting for completion.

Parameters
[in]trajectoryThe trajectory to execute
[in]controllersAn optional list of ros2_controllers to execute with. If none, MoveIt will attempt to find a controller. The exact behavior of finding a controller depends on which MoveItControllerManager plugin is active.
Returns
moveit::core::MoveItErrorCode::SUCCESS if successful

Definition at line 1492 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ asyncExecute() [2/2]

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::asyncExecute ( const Plan plan,
const std::vector< std::string > &  controllers = std::vector<std::string>()
)

Given a plan, execute it without waiting for completion.

Parameters
[in]planThe motion plan for which to execute
[in]controllersAn optional list of ros2_controllers to execute with. If none, MoveIt will attempt to find a controller. The exact behavior of finding a controller depends on which MoveItControllerManager plugin is active.
Returns
moveit::core::MoveItErrorCode::SUCCESS if successful

Definition at line 1486 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ asyncMove()

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::asyncMove ( )

Plan and execute a trajectory that takes the group of joints declared in the constructor to the specified target. This call is not blocking (does not wait for the execution of the trajectory to complete).

Definition at line 1471 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ attachObject() [1/2]

bool moveit::planning_interface::MoveGroupInterface::attachObject ( const std::string &  object,
const std::string &  link,
const std::vector< std::string > &  touch_links
)

Given the name of an object in the planning scene, make the object attached to a link of the robot. The set of links the object is allowed to touch without considering that a collision is specified by touch_links. If link is empty, the end-effector link is used. If there is no end-effector, the first link in the group is used. If the object name does not exist an error will be produced in move_group, but the request made by this interface will succeed.

Definition at line 2338 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ attachObject() [2/2]

bool moveit::planning_interface::MoveGroupInterface::attachObject ( const std::string &  object,
const std::string &  link = ""
)

Given the name of an object in the planning scene, make the object attached to a link of the robot. If no link name is specified, the end-effector is used. If there is no end-effector, the first link in the group is used. If the object name does not exist an error will be produced in move_group, but the request made by this interface will succeed.

Definition at line 2333 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ clearPathConstraints()

void moveit::planning_interface::MoveGroupInterface::clearPathConstraints ( )

Specify that no path constraints are to be used. This removes any path constraints set in previous calls to setPathConstraints().

Definition at line 2271 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ clearPoseTarget()

void moveit::planning_interface::MoveGroupInterface::clearPoseTarget ( const std::string &  end_effector_link = "")

Forget pose(s) specified for end_effector_link.

Definition at line 1834 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ clearPoseTargets()

void moveit::planning_interface::MoveGroupInterface::clearPoseTargets ( )

Forget any poses specified for all end-effectors.

Definition at line 1839 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ clearTrajectoryConstraints()

void moveit::planning_interface::MoveGroupInterface::clearTrajectoryConstraints ( )

Definition at line 2286 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ computeCartesianPath() [1/4]

double moveit::planning_interface::MoveGroupInterface::computeCartesianPath ( const std::vector< geometry_msgs::msg::Pose > &  waypoints,
double  eef_step,
double  ,
moveit_msgs::msg::RobotTrajectory &  trajectory,
bool  avoid_collisions = true,
moveit_msgs::msg::MoveItErrorCodes *  error_code = nullptr
)
inline

Compute a Cartesian path that follows specified waypoints with a step size of at most eef_step meters between end effector configurations of consecutive points in the result trajectory. The reference frame for the waypoints is that specified by setPoseReferenceFrame(). No more than jump_threshold is allowed as change in distance in the configuration space of the robot (this is to prevent 'jumps' in IK solutions). Collisions are avoided if avoid_collisions is set to true. If collisions cannot be avoided, the function fails. Return a value that is between 0.0 and 1.0 indicating the fraction of the path achieved as described by the waypoints. Return -1.0 in case of error.

Definition at line 769 of file move_group_interface.h.

Here is the caller graph for this function:

◆ computeCartesianPath() [2/4]

double moveit::planning_interface::MoveGroupInterface::computeCartesianPath ( const std::vector< geometry_msgs::msg::Pose > &  waypoints,
double  eef_step,
double  ,
moveit_msgs::msg::RobotTrajectory &  trajectory,
const moveit_msgs::msg::Constraints &  path_constraints,
bool  avoid_collisions = true,
moveit_msgs::msg::MoveItErrorCodes *  error_code = nullptr
)
inline

Compute a Cartesian path that follows specified waypoints with a step size of at most eef_step meters between end effector configurations of consecutive points in the result trajectory. The reference frame for the waypoints is that specified by setPoseReferenceFrame(). No more than jump_threshold is allowed as change in distance in the configuration space of the robot (this is to prevent 'jumps' in IK solutions). Kinematic constraints for the path given by path_constraints will be met for every point along the trajectory, if they are not met, a partial solution will be returned. Constraints are checked (collision and kinematic) if avoid_collisions is set to true. If constraints cannot be met, the function fails. Return a value that is between 0.0 and 1.0 indicating the fraction of the path achieved as described by the waypoints. Return -1.0 in case of error.

Definition at line 792 of file move_group_interface.h.

◆ computeCartesianPath() [3/4]

double moveit::planning_interface::MoveGroupInterface::computeCartesianPath ( const std::vector< geometry_msgs::msg::Pose > &  waypoints,
double  eef_step,
moveit_msgs::msg::RobotTrajectory &  trajectory,
bool  avoid_collisions = true,
moveit_msgs::msg::MoveItErrorCodes *  error_code = nullptr
)

Definition at line 1554 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ computeCartesianPath() [4/4]

double moveit::planning_interface::MoveGroupInterface::computeCartesianPath ( const std::vector< geometry_msgs::msg::Pose > &  waypoints,
double  eef_step,
moveit_msgs::msg::RobotTrajectory &  trajectory,
const moveit_msgs::msg::Constraints &  path_constraints,
bool  avoid_collisions = true,
moveit_msgs::msg::MoveItErrorCodes *  error_code = nullptr
)

Definition at line 1563 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ constructMotionPlanRequest()

void moveit::planning_interface::MoveGroupInterface::constructMotionPlanRequest ( moveit_msgs::msg::MotionPlanRequest &  request)

Build the MotionPlanRequest that would be sent to the move_group action with plan() or move() and store it in request.

Definition at line 2354 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ constructRobotState()

void moveit::planning_interface::MoveGroupInterface::constructRobotState ( moveit_msgs::msg::RobotState &  state)

Build a RobotState message for use with plan() or computeCartesianPath() If the move_group has a custom set start state, this method will use that as the robot state.

Otherwise, the robot state will be with is_diff set to true, causing it to be an offset from the current state of the robot at time of the state's use.

Definition at line 2349 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ detachObject()

bool moveit::planning_interface::MoveGroupInterface::detachObject ( const std::string &  name = "")

Detach an object. name specifies the name of the object attached to this group, or the name of the link the object is attached to. If there is no name specified, and there is only one attached object, that object is detached. An error is produced if no object to detach is identified.

Definition at line 2344 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ execute() [1/2]

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::execute ( const moveit_msgs::msg::RobotTrajectory &  trajectory,
const std::vector< std::string > &  controllers = std::vector<std::string>()
)

Given a robot trajectory, execute it while waiting for completion.

Parameters
[in]trajectoryThe trajectory to execute
[in]controllersAn optional list of ros2_controllers to execute with. If none, MoveIt will attempt to find a controller. The exact behavior of finding a controller depends on which MoveItControllerManager plugin is active.
Returns
moveit::core::MoveItErrorCode::SUCCESS if successful

Definition at line 1503 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ execute() [2/2]

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::execute ( const Plan plan,
const std::vector< std::string > &  controllers = std::vector<std::string>()
)

Given a plan, execute it while waiting for completion.

Parameters
[in]planContains trajectory info as well as metadata such as a RobotModel.
[in]controllersAn optional list of ros2_controllers to execute with. If none, MoveIt will attempt to find a controller. The exact behavior of finding a controller depends on which MoveItControllerManager plugin is active.
Returns
moveit::core::MoveItErrorCode::SUCCESS if successful

Definition at line 1498 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ forgetJointValues()

void moveit::planning_interface::MoveGroupInterface::forgetJointValues ( const std::string &  name)

Forget the joint values remembered under name.

Definition at line 2195 of file move_group_interface.cpp.

◆ getActiveJoints()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getActiveJoints ( ) const

Get only the active (actuated) joints this instance operates on.

Definition at line 2168 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getCurrentJointValues()

std::vector< double > moveit::planning_interface::MoveGroupInterface::getCurrentJointValues ( ) const

Get the current joint values for the joints planned for by this instance (see getJoints())

Definition at line 2070 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getCurrentPose()

geometry_msgs::msg::PoseStamped moveit::planning_interface::MoveGroupInterface::getCurrentPose ( const std::string &  end_effector_link = "") const

Get the pose for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

Definition at line 2113 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getCurrentRPY()

std::vector< double > moveit::planning_interface::MoveGroupInterface::getCurrentRPY ( const std::string &  end_effector_link = "") const

Get the roll-pitch-yaw (XYZ) for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

Definition at line 2139 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getCurrentState()

moveit::core::RobotStatePtr moveit::planning_interface::MoveGroupInterface::getCurrentState ( double  wait = 1) const

Get the current state of the robot within the duration specified by wait.

Definition at line 2183 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getDefaultPlannerId()

std::string moveit::planning_interface::MoveGroupInterface::getDefaultPlannerId ( const std::string &  group = "") const

Get the default planner of the current planning pipeline for the given group (or the pipeline's default)

Definition at line 1431 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getDefaultPlanningPipelineId()

std::string moveit::planning_interface::MoveGroupInterface::getDefaultPlanningPipelineId ( ) const

Definition at line 1416 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getEndEffector()

const std::string & moveit::planning_interface::MoveGroupInterface::getEndEffector ( ) const

Get the current end-effector name. This returns the value set by setEndEffector() (or indirectly by setEndEffectorLink()). If setEndEffector() was not called, this function reports an end-effector attached to this group. If there are multiple end-effectors, one of them is returned. If no end-effector is known, the empty string is returned.

Definition at line 1812 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getEndEffectorLink()

const std::string & moveit::planning_interface::MoveGroupInterface::getEndEffectorLink ( ) const

Get the current end-effector link. This returns the value set by setEndEffectorLink() (or indirectly by setEndEffector()). If setEndEffectorLink() was not called, this function reports the link name that serves as parent of an end-effector attached to this group. If there are multiple end-effectors, one of them is returned. If no such link is known, the empty string is returned.

Definition at line 1807 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getGoalJointTolerance()

double moveit::planning_interface::MoveGroupInterface::getGoalJointTolerance ( ) const

Get the tolerance that is used for reaching a joint goal. This is distance for each joint in configuration space.

Definition at line 2023 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getGoalOrientationTolerance()

double moveit::planning_interface::MoveGroupInterface::getGoalOrientationTolerance ( ) const

Get the tolerance that is used for reaching an orientation goal. This is the tolerance for roll, pitch and yaw, in radians.

Definition at line 2033 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getGoalPositionTolerance()

double moveit::planning_interface::MoveGroupInterface::getGoalPositionTolerance ( ) const

Get the tolerance that is used for reaching a position goal. This is be the radius of a sphere where the end-effector must reach.

Definition at line 2028 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getInterfaceDescription()

bool moveit::planning_interface::MoveGroupInterface::getInterfaceDescription ( moveit_msgs::msg::PlannerInterfaceDescription &  desc) const

Get the description of the default planning plugin loaded by the action server.

Definition at line 1394 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getInterfaceDescriptions()

bool moveit::planning_interface::MoveGroupInterface::getInterfaceDescriptions ( std::vector< moveit_msgs::msg::PlannerInterfaceDescription > &  desc) const

Get the descriptions of all planning plugins loaded by the action server.

Definition at line 1399 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getJointModelGroupNames()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getJointModelGroupNames ( ) const

Get the available planning group names.

Definition at line 2328 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getJointNames()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getJointNames ( ) const

Get vector of names of joints available in move group.

Definition at line 1618 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getJoints()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getJoints ( ) const

Get all the joints this instance operates on (including fixed joints)

Definition at line 2173 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getJointValueTarget()

void moveit::planning_interface::MoveGroupInterface::getJointValueTarget ( std::vector< double > &  group_variable_values) const

Get the current joint state goal in a form compatible to setJointValueTarget()

Definition at line 1670 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getKnownConstraints()

std::vector< std::string > moveit::planning_interface::MoveGroupInterface::getKnownConstraints ( ) const

Get the names of the known constraints as read from the Mongo database, if a connection was achieved.

Definition at line 2251 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getLinkNames()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getLinkNames ( ) const

Get vector of names of links available in move group.

Definition at line 1623 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getMaxAccelerationScalingFactor()

double moveit::planning_interface::MoveGroupInterface::getMaxAccelerationScalingFactor ( ) const

Get the max acceleration scaling factor set by setMaxAccelerationScalingFactor().

Definition at line 1466 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getMaxVelocityScalingFactor()

double moveit::planning_interface::MoveGroupInterface::getMaxVelocityScalingFactor ( ) const

Get the max velocity scaling factor set by setMaxVelocityScalingFactor().

Definition at line 1456 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getMoveGroupClient()

rclcpp_action::Client< moveit_msgs::action::MoveGroup > & moveit::planning_interface::MoveGroupInterface::getMoveGroupClient ( ) const

Get the move_group action client used by the MoveGroupInterface. The client can be used for querying the execution state of the trajectory and abort trajectory execution during asynchronous execution.

Definition at line 1476 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getName()

const std::string & moveit::planning_interface::MoveGroupInterface::getName ( ) const

Get the name of the group this instance operates on.

Definition at line 1372 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getNamedTargets()

const std::vector< std::string > & moveit::planning_interface::MoveGroupInterface::getNamedTargets ( ) const

Get the names of the named robot states available as targets, both either remembered states or default states from srdf.

Definition at line 1377 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getNamedTargetValues()

std::map< std::string, double > moveit::planning_interface::MoveGroupInterface::getNamedTargetValues ( const std::string &  name) const

Get the joint angles for targets specified by name.

Definition at line 1628 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getNode()

const rclcpp::Node::SharedPtr & moveit::planning_interface::MoveGroupInterface::getNode ( ) const

Get the ROS node handle of this instance operates on.

Definition at line 2318 of file move_group_interface.cpp.

◆ getPathConstraints()

moveit_msgs::msg::Constraints moveit::planning_interface::MoveGroupInterface::getPathConstraints ( ) const

Get the actual set of constraints in use with this MoveGroupInterface.

Returns
A copy of the current path constraints set for this interface

Definition at line 2256 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPlannerId()

const std::string & moveit::planning_interface::MoveGroupInterface::getPlannerId ( ) const

Get the current planner_id.

Definition at line 1441 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPlannerParams()

std::map< std::string, std::string > moveit::planning_interface::MoveGroupInterface::getPlannerParams ( const std::string &  planner_id,
const std::string &  group = ""
) const

Get the planner parameters for given group and planner_id.

Definition at line 1404 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPlanningFrame()

const std::string & moveit::planning_interface::MoveGroupInterface::getPlanningFrame ( ) const

Get the name of the frame in which the robot is planning.

Definition at line 2323 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPlanningPipelineId()

const std::string & moveit::planning_interface::MoveGroupInterface::getPlanningPipelineId ( ) const

Get the current planning_pipeline_id.

Definition at line 1426 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPlanningTime()

double moveit::planning_interface::MoveGroupInterface::getPlanningTime ( ) const

Get the number of seconds set by setPlanningTime()

Get time allowed to planner to solve problem before aborting.

Definition at line 2308 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getPoseReferenceFrame()

const std::string & moveit::planning_interface::MoveGroupInterface::getPoseReferenceFrame ( ) const

Get the reference frame set by setPoseReferenceFrame(). By default this is the reference frame of the robot model.

Definition at line 2018 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getPoseTarget()

const geometry_msgs::msg::PoseStamped & moveit::planning_interface::MoveGroupInterface::getPoseTarget ( const std::string &  end_effector_link = "") const

Get the currently set pose goal for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed. If multiple targets are set for end_effector_link this will return the first one. If no pose target is set for this end_effector_link then an empty pose will be returned (check for orientation.xyzw == 0).

Definition at line 1913 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getPoseTargets()

const std::vector< geometry_msgs::msg::PoseStamped > & moveit::planning_interface::MoveGroupInterface::getPoseTargets ( const std::string &  end_effector_link = "") const

Get the currently set pose goal for the end-effector end_effector_link. The pose goal can consist of multiple poses, if corresponding setPoseTarget() calls were made. Otherwise, only one pose is returned in the vector. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed

Definition at line 1919 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getRandomJointValues()

std::vector< double > moveit::planning_interface::MoveGroupInterface::getRandomJointValues ( ) const

Get random joint values for the joints planned for by this instance (see getJoints())

Definition at line 2079 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getRandomPose()

geometry_msgs::msg::PoseStamped moveit::planning_interface::MoveGroupInterface::getRandomPose ( const std::string &  end_effector_link = "") const

Get a random reachable pose for the end-effector end_effector_link. If end_effector_link is empty (the default value) then the end-effector reported by getEndEffectorLink() is assumed.

Definition at line 2086 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getRememberedJointValues()

const std::map< std::string, std::vector< double > > & moveit::planning_interface::MoveGroupInterface::getRememberedJointValues ( ) const
inline

Get the currently remembered map of names to joint values.

Definition at line 925 of file move_group_interface.h.

◆ getRobotModel()

moveit::core::RobotModelConstPtr moveit::planning_interface::MoveGroupInterface::getRobotModel ( ) const

Get the RobotModel object.

Definition at line 1389 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getTargetRobotState()

const moveit::core::RobotState & moveit::planning_interface::MoveGroupInterface::getTargetRobotState ( ) const
protected

return the full RobotState of the joint-space target, only for internal use

Definition at line 1802 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getTF()

const std::shared_ptr< tf2_ros::Buffer > & moveit::planning_interface::MoveGroupInterface::getTF ( ) const

Get the tf2_ros::Buffer.

Definition at line 1384 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getTrajectoryConstraints()

moveit_msgs::msg::TrajectoryConstraints moveit::planning_interface::MoveGroupInterface::getTrajectoryConstraints ( ) const

Definition at line 2276 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ getVariableCount()

unsigned int moveit::planning_interface::MoveGroupInterface::getVariableCount ( ) const

Get the number of variables used to describe the state of this group. This is larger or equal to the number of DOF.

Definition at line 2178 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ move()

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::move ( )

Plan and execute a trajectory that takes the group of joints declared in the constructor to the specified target. This call is always blocking (waits for the execution of the trajectory to complete) and requires an asynchronous spinner to be started.

Definition at line 1481 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ MOVEIT_STRUCT_FORWARD()

moveit::planning_interface::MoveGroupInterface::MOVEIT_STRUCT_FORWARD ( Plan  )

◆ operator=() [1/2]

MoveGroupInterface & moveit::planning_interface::MoveGroupInterface::operator= ( const MoveGroupInterface )
delete

◆ operator=() [2/2]

MoveGroupInterface & moveit::planning_interface::MoveGroupInterface::operator= ( MoveGroupInterface &&  other)
noexcept

Definition at line 1358 of file move_group_interface.cpp.

◆ plan()

moveit::core::MoveItErrorCode moveit::planning_interface::MoveGroupInterface::plan ( Plan plan)

Compute a motion plan that takes the group declared in the constructor from the current state to the specified target. No execution is performed. The resulting plan is stored in plan.

Definition at line 1509 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ rememberJointValues() [1/2]

void moveit::planning_interface::MoveGroupInterface::rememberJointValues ( const std::string &  name)

Remember the current joint values (of the robot being monitored) under name. These can be used by setNamedTarget(). These values are remembered locally in the client. Other clients will not have access to them.

Definition at line 2060 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ rememberJointValues() [2/2]

void moveit::planning_interface::MoveGroupInterface::rememberJointValues ( const std::string &  name,
const std::vector< double > &  values
)

Remember the specified joint values under name. These can be used by setNamedTarget(). These values are remembered locally in the client. Other clients will not have access to them.

Definition at line 2190 of file move_group_interface.cpp.

◆ setApproximateJointValueTarget() [1/3]

bool moveit::planning_interface::MoveGroupInterface::setApproximateJointValueTarget ( const Eigen::Isometry3d &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then an approximation is used.

Definition at line 1795 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setApproximateJointValueTarget() [2/3]

bool moveit::planning_interface::MoveGroupInterface::setApproximateJointValueTarget ( const geometry_msgs::msg::Pose &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then an approximation is used.

Definition at line 1783 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setApproximateJointValueTarget() [3/3]

bool moveit::planning_interface::MoveGroupInterface::setApproximateJointValueTarget ( const geometry_msgs::msg::PoseStamped &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then an approximation is used.

Definition at line 1789 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setConstraintsDatabase()

void moveit::planning_interface::MoveGroupInterface::setConstraintsDatabase ( const std::string &  host,
unsigned int  port
)

Specify where the database server that holds known constraints resides.

Definition at line 2291 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setEndEffector()

bool moveit::planning_interface::MoveGroupInterface::setEndEffector ( const std::string &  eef_name)

Specify the name of the end-effector to use. This is equivalent to setting the EndEffectorLink to the parent link of this end effector.

Definition at line 1826 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setEndEffectorLink()

bool moveit::planning_interface::MoveGroupInterface::setEndEffectorLink ( const std::string &  end_effector_link)

Specify the parent link of the end-effector. This end_effector_link will be used in calls to pose target functions when end_effector_link is not explicitly specified.

Definition at line 1817 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setGoalJointTolerance()

void moveit::planning_interface::MoveGroupInterface::setGoalJointTolerance ( double  tolerance)

Set the joint tolerance (for each joint) that is used for reaching the goal when moving to a joint value target.

Definition at line 2045 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setGoalOrientationTolerance()

void moveit::planning_interface::MoveGroupInterface::setGoalOrientationTolerance ( double  tolerance)

Set the orientation tolerance that is used for reaching the goal when moving to a pose.

Definition at line 2055 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setGoalPositionTolerance()

void moveit::planning_interface::MoveGroupInterface::setGoalPositionTolerance ( double  tolerance)

Set the position tolerance that is used for reaching the goal when moving to a pose.

Definition at line 2050 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setGoalTolerance()

void moveit::planning_interface::MoveGroupInterface::setGoalTolerance ( double  tolerance)

Set the tolerance that is used for reaching the goal. For joint state goals, this will be distance for each joint, in the configuration space (radians or meters depending on joint type). For pose goals this will be the radius of a sphere where the end-effector must reach. This function simply triggers calls to setGoalPositionTolerance(), setGoalOrientationTolerance() and setGoalJointTolerance().

Definition at line 2038 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [1/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const Eigen::Isometry3d &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then false is returned BUT THE PARTIAL RESULT OF IK IS STILL SET AS THE GOAL.

Definition at line 1777 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [2/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const geometry_msgs::msg::Pose &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then false is returned BUT THE PARTIAL RESULT OF IK IS STILL SET AS THE GOAL.

Definition at line 1765 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [3/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const geometry_msgs::msg::PoseStamped &  eef_pose,
const std::string &  end_effector_link = ""
)

Set the joint state goal for a particular joint by computing IK.

This is different from setPoseTarget() in that a single IK state (aka JointValueTarget) is computed using IK, and the resulting JointValueTarget is used as the target for planning.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If IK fails to find a solution then false is returned BUT THE PARTIAL RESULT OF IK IS STILL SET AS THE GOAL.

Definition at line 1771 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [4/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const moveit::core::RobotState robot_state)

Set the JointValueTarget and use it for future planning requests.

The target for all joints in the group are set to the value in robot_state.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1732 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [5/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const sensor_msgs::msg::JointState &  state)

Set the JointValueTarget and use it for future planning requests.

state is used to set the target joint state values. Values not specified in state remain unchanged.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1760 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [6/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const std::map< std::string, double > &  variable_values)

Set the JointValueTarget and use it for future planning requests.

variable_values is a map of joint variable names to values. Joints in the group are used to set the JointValueTarget. Joints in the model but not in the group are ignored. An exception is thrown if a joint name is not found in the model. Joint variables in the group that are missing from variable_values remain unchanged (to reset all target variables to their current values in the robot use setJointValueTarget(getCurrentJointValues())).

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1690 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [7/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const std::string &  joint_name,
const std::vector< double > &  values
)

Set the JointValueTarget and use it for future planning requests.

values MUST have one value for each variable in joint joint_name. values are set as the target for this joint. Other joint targets remain unchanged.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1745 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [8/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const std::string &  joint_name,
double  value
)

Set the JointValueTarget and use it for future planning requests.

Joint joint_name must be a 1-DOF joint. value is set as the target for this joint. Other joint targets remain unchanged.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1739 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setJointValueTarget() [9/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const std::vector< double > &  group_variable_values)

Set the JointValueTarget and use it for future planning requests.

group_variable_values MUST exactly match the variable order as returned by getJointValueTarget(std::vector<double>&).

This always sets all of the group's joint values.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1675 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setJointValueTarget() [10/10]

bool moveit::planning_interface::MoveGroupInterface::setJointValueTarget ( const std::vector< std::string > &  variable_names,
const std::vector< double > &  variable_values
)

Set the JointValueTarget and use it for future planning requests.

variable_names are variable joint names and variable_values are variable joint positions. Joints in the group are used to set the JointValueTarget. Joints in the model but not in the group are ignored. An exception is thrown if a joint name is not found in the model. Joint variables in the group that are missing from variable_names remain unchanged (to reset all target variables to their current values in the robot use setJointValueTarget(getCurrentJointValues())).

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

If these values are out of bounds then false is returned BUT THE VALUES ARE STILL SET AS THE GOAL.

Definition at line 1708 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setLookAroundAttempts()

void moveit::planning_interface::MoveGroupInterface::setLookAroundAttempts ( int32_t  attempts)

How often is the system allowed to move the camera to update environment model when looking.

Definition at line 2206 of file move_group_interface.cpp.

◆ setMaxAccelerationScalingFactor()

void moveit::planning_interface::MoveGroupInterface::setMaxAccelerationScalingFactor ( double  max_acceleration_scaling_factor)

Set a scaling factor for optionally reducing the maximum joint acceleration. Allowed values are in (0,1]. The maximum joint acceleration specified in the robot model is multiplied by the factor. If the value is 0, it is set to the default value, which is defined in joint_limits.yaml of the moveit_config. If the value is greater than 1, it is set to 1.0.

Definition at line 1461 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setMaxVelocityScalingFactor()

void moveit::planning_interface::MoveGroupInterface::setMaxVelocityScalingFactor ( double  max_velocity_scaling_factor)

Set a scaling factor for optionally reducing the maximum joint velocity. Allowed values are in (0,1]. The maximum joint velocity specified in the robot model is multiplied by the factor. If the value is 0, it is set to the default value, which is defined in joint_limits.yaml of the moveit_config. If the value is greater than 1, it is set to 1.0.

Definition at line 1451 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setNamedTarget()

bool moveit::planning_interface::MoveGroupInterface::setNamedTarget ( const std::string &  name)

Set the current joint values to be ones previously remembered by rememberJointValues() or, if not found, that are specified in the SRDF under the name name as a group state.

Definition at line 1651 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setNumPlanningAttempts()

void moveit::planning_interface::MoveGroupInterface::setNumPlanningAttempts ( unsigned int  num_planning_attempts)

Set the number of times the motion plan is to be computed from scratch before the shortest solution is returned. The default value is 1.

Definition at line 1446 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setOrientationTarget()

bool moveit::planning_interface::MoveGroupInterface::setOrientationTarget ( double  x,
double  y,
double  z,
double  w,
const std::string &  end_effector_link = ""
)

Set the goal orientation of the end-effector end_effector_link to be the quaternion (x,y,z,w).

If end_effector_link is empty then getEndEffectorLink() is used.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1987 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPathConstraints() [1/2]

void moveit::planning_interface::MoveGroupInterface::setPathConstraints ( const moveit_msgs::msg::Constraints &  constraint)

Specify a set of path constraints to use. This version does not require a database server. This replaces any path constraints set in previous calls to setPathConstraints().

Definition at line 2266 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPathConstraints() [2/2]

bool moveit::planning_interface::MoveGroupInterface::setPathConstraints ( const std::string &  constraint)

Specify a set of path constraints to use. The constraints are looked up by name from the Mongo database server. This replaces any path constraints set in previous calls to setPathConstraints().

Definition at line 2261 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPlannerId()

void moveit::planning_interface::MoveGroupInterface::setPlannerId ( const std::string &  planner_id)

Specify a planner to be used for further planning.

Definition at line 1436 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPlannerParams()

void moveit::planning_interface::MoveGroupInterface::setPlannerParams ( const std::string &  planner_id,
const std::string &  group,
const std::map< std::string, std::string > &  params,
bool  bReplace = false
)

Set the planner parameters for given group and planner_id.

Definition at line 1410 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPlanningPipelineId()

void moveit::planning_interface::MoveGroupInterface::setPlanningPipelineId ( const std::string &  pipeline_id)

Specify a planning pipeline to be used for further planning.

Definition at line 1421 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPlanningTime()

void moveit::planning_interface::MoveGroupInterface::setPlanningTime ( double  seconds)

Specify the maximum amount of time to use when planning.

Set time allowed to planner to solve problem before aborting.

Definition at line 2302 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setPoseReferenceFrame()

void moveit::planning_interface::MoveGroupInterface::setPoseReferenceFrame ( const std::string &  pose_reference_frame)

Specify which reference frame to assume for poses specified without a reference frame.

Definition at line 2013 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPoseTarget() [1/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTarget ( const Eigen::Isometry3d &  end_effector_pose,
const std::string &  end_effector_link = ""
)

Set the goal pose of the end-effector end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

This new pose target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1844 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setPoseTarget() [2/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTarget ( const geometry_msgs::msg::Pose &  target,
const std::string &  end_effector_link = ""
)

Set the goal pose of the end-effector end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1853 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPoseTarget() [3/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTarget ( const geometry_msgs::msg::PoseStamped &  target,
const std::string &  end_effector_link = ""
)

Set the goal pose of the end-effector end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1862 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPoseTargets() [1/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTargets ( const EigenSTL::vector_Isometry3d &  end_effector_pose,
const std::string &  end_effector_link = ""
)

Set goal poses for end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

When planning, the planner will find a path to one (arbitrarily chosen) pose from the list. If this group contains multiple end effectors then all end effectors in the group should have the same number of pose targets. If planning is successful then the result of the plan will place all end effectors at a pose from the same index in the list. (In other words, if one end effector ends up at the 3rd pose in the list then all end effectors in the group will end up at the 3rd pose in their respective lists. End effectors which do not matter (i.e. can end up in any position) can have their pose targets disabled by calling clearPoseTarget() for that end_effector_link.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target(s) for this end_effector_link.

Definition at line 1869 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setPoseTargets() [2/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTargets ( const std::vector< geometry_msgs::msg::Pose > &  target,
const std::string &  end_effector_link = ""
)

Set goal poses for end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

When planning, the planner will find a path to one (arbitrarily chosen) pose from the list. If this group contains multiple end effectors then all end effectors in the group should have the same number of pose targets. If planning is successful then the result of the plan will place all end effectors at a pose from the same index in the list. (In other words, if one end effector ends up at the 3rd pose in the list then all end effectors in the group will end up at the 3rd pose in their respective lists. End effectors which do not matter (i.e. can end up in any position) can have their pose targets disabled by calling clearPoseTarget() for that end_effector_link.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target(s) for this end_effector_link.

Definition at line 1883 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPoseTargets() [3/3]

bool moveit::planning_interface::MoveGroupInterface::setPoseTargets ( const std::vector< geometry_msgs::msg::PoseStamped > &  target,
const std::string &  end_effector_link = ""
)

Set goal poses for end_effector_link.

If end_effector_link is empty then getEndEffectorLink() is used.

When planning, the planner will find a path to one (arbitrarily chosen) pose from the list. If this group contains multiple end effectors then all end effectors in the group should have the same number of pose targets. If planning is successful then the result of the plan will place all end effectors at a pose from the same index in the list. (In other words, if one end effector ends up at the 3rd pose in the list then all end effectors in the group will end up at the 3rd pose in their respective lists. End effectors which do not matter (i.e. can end up in any position) can have their pose targets disabled by calling clearPoseTarget() for that end_effector_link.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target(s) for this end_effector_link.

Definition at line 1898 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setPositionTarget()

bool moveit::planning_interface::MoveGroupInterface::setPositionTarget ( double  x,
double  y,
double  z,
const std::string &  end_effector_link = ""
)

Set the goal position of the end-effector end_effector_link to be (x, y, z).

If end_effector_link is empty then getEndEffectorLink() is used.

This new position target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1939 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setRandomTarget()

void moveit::planning_interface::MoveGroupInterface::setRandomTarget ( )

Set the joint state goal to a random joint configuration.

After this call, the JointValueTarget is used instead of any previously set Position, Orientation, or Pose targets.

Definition at line 1612 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setReplanAttempts()

void moveit::planning_interface::MoveGroupInterface::setReplanAttempts ( int32_t  attempts)

Maximum number of replanning attempts.

Definition at line 2225 of file move_group_interface.cpp.

◆ setReplanDelay()

void moveit::planning_interface::MoveGroupInterface::setReplanDelay ( double  delay)

Sleep this duration between replanning attempts (in walltime seconds)

Definition at line 2238 of file move_group_interface.cpp.

◆ setRPYTarget()

bool moveit::planning_interface::MoveGroupInterface::setRPYTarget ( double  roll,
double  pitch,
double  yaw,
const std::string &  end_effector_link = ""
)

Set the goal orientation of the end-effector end_effector_link to be (roll,pitch,yaw) radians.

If end_effector_link is empty then getEndEffectorLink() is used.

This new orientation target replaces any pre-existing JointValueTarget or pre-existing Position, Orientation, or Pose target for this end_effector_link.

Definition at line 1964 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setStartState() [1/2]

void moveit::planning_interface::MoveGroupInterface::setStartState ( const moveit::core::RobotState start_state)

If a different start state should be considered instead of the current state of the robot, this function sets that state.

Definition at line 1602 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setStartState() [2/2]

void moveit::planning_interface::MoveGroupInterface::setStartState ( const moveit_msgs::msg::RobotState &  start_state)

If a different start state should be considered instead of the current state of the robot, this function sets that state.

Definition at line 1586 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setStartStateToCurrentState()

void moveit::planning_interface::MoveGroupInterface::setStartStateToCurrentState ( )

Set the starting state for planning to be that reported by the robot's joint state publication.

Definition at line 1607 of file move_group_interface.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setSupportSurfaceName()

void moveit::planning_interface::MoveGroupInterface::setSupportSurfaceName ( const std::string &  name)

For pick/place operations, the name of the support surface is used to specify the fact that attached objects are allowed to touch the support surface.

Definition at line 2313 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setTrajectoryConstraints()

void moveit::planning_interface::MoveGroupInterface::setTrajectoryConstraints ( const moveit_msgs::msg::TrajectoryConstraints &  constraint)

Definition at line 2281 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ setWorkspace()

void moveit::planning_interface::MoveGroupInterface::setWorkspace ( double  minx,
double  miny,
double  minz,
double  maxx,
double  maxy,
double  maxz
)

Specify the workspace bounding box. The box is specified in the planning frame (i.e. relative to the robot root link start position). This is useful when the planning group contains the root joint of the robot – i.e. when planning motion for the robot relative to the world.

Definition at line 2296 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ startStateMonitor()

bool moveit::planning_interface::MoveGroupInterface::startStateMonitor ( double  wait = 1.0)

When reasoning about the current state of a robot, a CurrentStateMonitor instance is automatically constructed. This function allows triggering the construction of that object from the beginning, so that future calls to functions such as getCurrentState() will not take so long and are less likely to fail.

Definition at line 2065 of file move_group_interface.cpp.

Here is the call graph for this function:

◆ stop()

void moveit::planning_interface::MoveGroupInterface::stop ( )

Stop any trajectory execution, if one is active.

Definition at line 1581 of file move_group_interface.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ ROBOT_DESCRIPTION

const std::string moveit::planning_interface::MoveGroupInterface::ROBOT_DESCRIPTION
static
Initial value:
=
"robot_description"

Default ROS parameter name from where to read the robot's URDF. Set to 'robot_description'.

Definition at line 79 of file move_group_interface.h.


The documentation for this class was generated from the following files:
